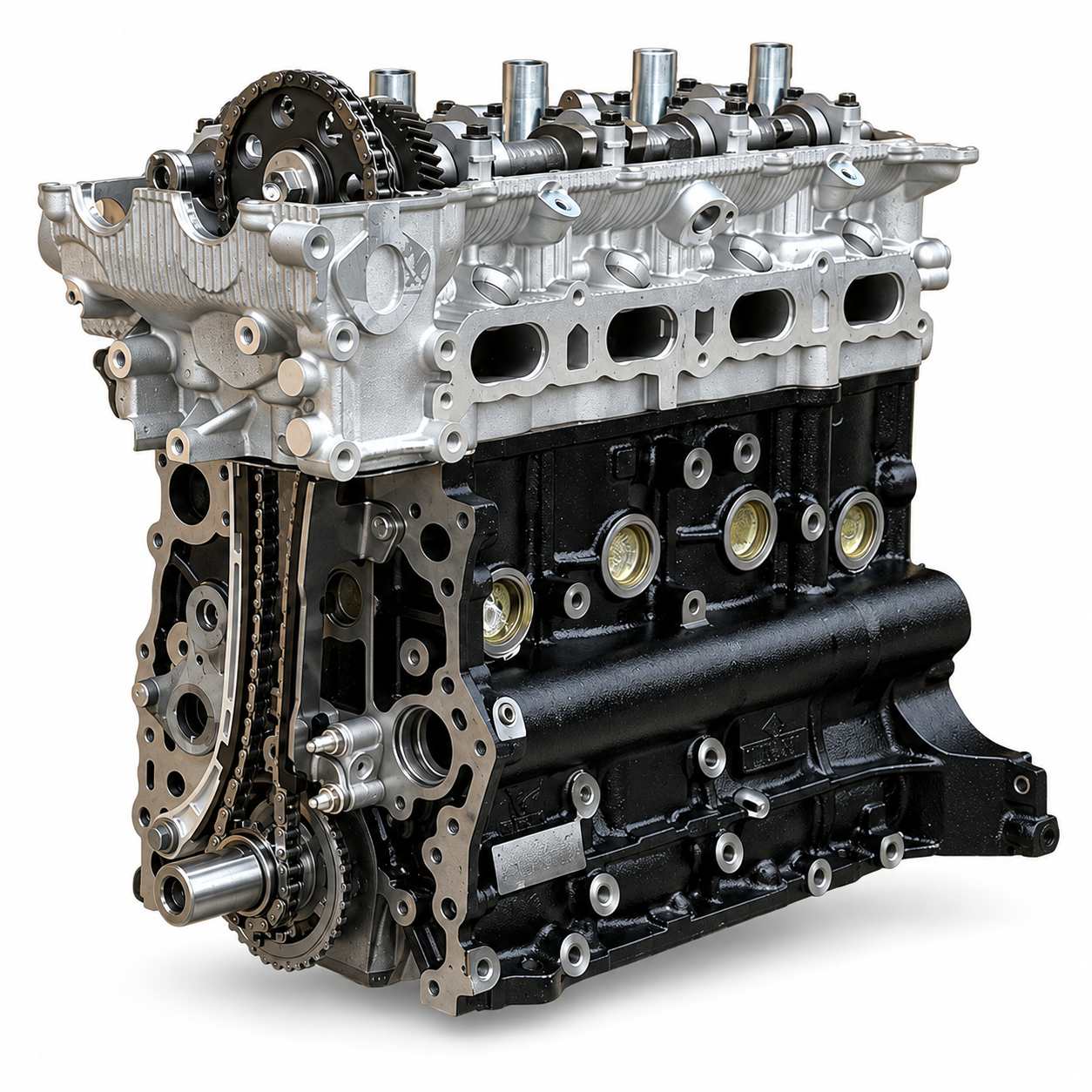

Engineered for dependable replacement performance, this 3RZ-FE 2.7L long block engine combines a cast-iron cylinder block with an aluminum DOHC 16-valve cylinder head. Precision-machined internal components and a square 95.0 mm bore and stroke support smooth torque delivery, durability, and reliable service in pickup, SUV, and light-commercial applications.
Key Features
- Complete long-block configuration for replacement and rebuilding projects
- Cast-iron cylinder block and aluminum-alloy cylinder head
- DOHC 16-valve valvetrain
- Precision-machined sealing and bearing surfaces
- Balanced 95.0 × 95.0 mm bore and stroke design

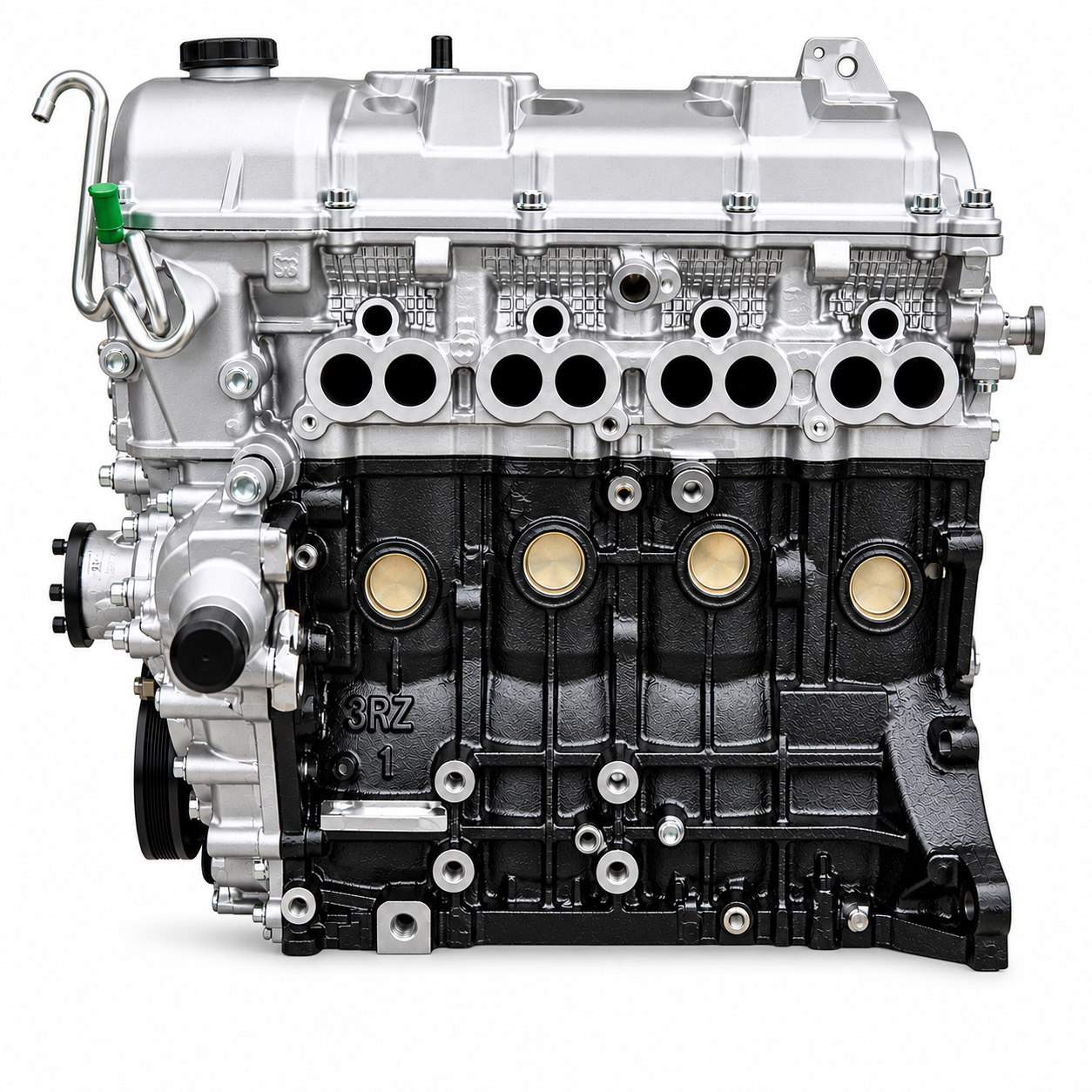

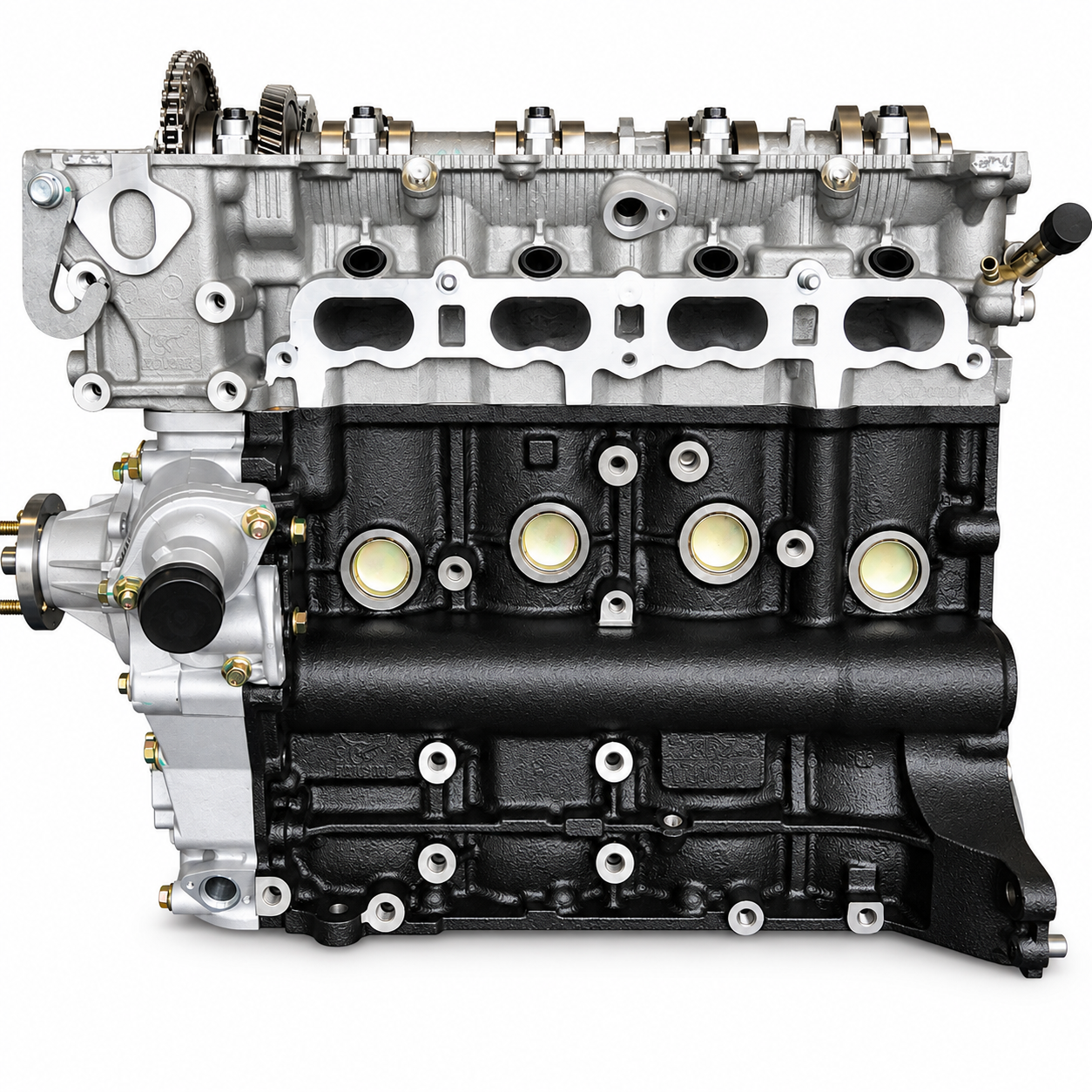

- Available for selected 4-port and 8-port configurations
- Suitable for repair shops, distributors, fleets, and engine rebuilders
Technical Specifications
| Engine Code | 3RZ-FE |
|---|---|
| Displacement | 2,694 cc / 2.7 L |
| Configuration | Inline 4-cylinder gasoline engine |
| Valvetrain | DOHC, 16 valves |
| Bore × Stroke | 95.0 × 95.0 mm |
| Compression Ratio | 9.5:1 |
| Maximum Output | 108 kW at 4,800 rpm (145 hp); selected-market versions up to 112 kW / 150 PS |
| Maximum Torque | 230 N·m at 4,000 rpm (170 lb-ft) |
| Firing Order | 1-3-4-2 |
| Block / Head Material | Cast iron / Aluminum alloy |
Vehicle Applications
| Vehicle | Engine / Model Years |
|---|---|
| Toyota Tacoma | 2.7L, 1995–2004 |
| Toyota 4Runner | 2.7L, 1996–2000 |
| Toyota T100 | 2.7L, 1995–1998 |
The 3RZ-FE engine family was also used in selected Toyota Hilux, Hilux Surf, Land Cruiser Prado, HiAce, HiAce Regius, Granvia, Touring HiAce, Dyna, and ToyoAce applications. Exact configurations vary by market and model year.
Long Block Includes
- Engine block
- Crankshaft, connecting rods, and pistons
- Complete cylinder head and valvetrain
- Timing-chain system
- Oil pump and sealing components
External accessories, intake and exhaust components, fuel and ignition systems, sensors, mounts, and brackets may not be included. Final supply configuration follows the confirmed quotation.
Fitment Verification
Please provide the VIN, vehicle model, model year, original engine code, and clear photos of the intake-port side before ordering. Vehicle model and year alone do not guarantee direct fitment. The 4-port/8-port cylinder-head configuration, oil pan, mounts, sensors, ignition, emissions equipment, and accessory brackets must be checked.
Factory Supply & Custom Service
With more than 20 years of engine machining and manufacturing experience, Yuan Yi operates as an integrated manufacturer and exporter serving global distributors, repair networks, and fleet customers. Contact us for configuration confirmation, packaging options, order quantities, and a factory quotation.
